Ultimate flexibility

Pre-packed Packed with any user-specified process resin

Compatible with any liquid chromatography system

Internal diameter, bed height, and column volume configurations enable customization to specific process development needs

Broad scalability

Up to 10 ml volume and 3 diameters

High performance

Reliable performance from process resins batch to batch

Small configuration drives reduced material needs, and saves valuable resin samples while delivering similar performance to larger preparative or process columns

Click and quote OPUS® PD Pre-packed chromatography columns




Configure and quote pre-packed columns using the latest web-based technology.

When you are planning your next set of small-scale chromatography experiments, configure the columns online and obtain a quote in minutes. Simply login, select your format, volume and resin that meets your experimental design and add to cart. A quote with all details and pricing will be emailed to you within minutes.

Make your chromatography life easier.

Get started

 Ultimate Flexibility

Any resin, multiple column dimensions

Currently platformed in various process development projects, as well as for resin sampling by various resin vendors, over 30,000 OPUS® MiniChrom® Columns have been in used in the industry since 2007. Individual laser labeling containing Part Number and Serial Number ensure traceability to the corresponding performance data.

  • Pre-packed with over 200 user-specified chromatography resins
  • 8 different column dimensions
  • Defined, documented packing procedures with correct compression factor to deliver high performance from process resins ​​​​
    • Reduced HETP consistent near 5
    • Asymmetry stable at 1.1 to 1.2
    • Up to 30 bar pressure resistance
  • Compatible with all common liquid chromatography systems - 1/16" female connectors
  • Available Certificate of Analysis (CoA) for each individual column

Available formats

Internal Diameter
Bed Height
Column Volume
cm mm cm   mm mL
0.5 5.0 1.0 10.0 0.2
0.5 5.0 2.5 25.0 0.5
0.5 5.0 5.0 50.0 1.0
0.8 8.0 2.0 20.0 1.0
0.8 8.0 5.0 50.0 2.5
0.8 8.0 10.0 100.0 5.0
1.13 11.3 5.0 50.0 5.0
1.13 11.3 10.0 100.0 10.0

Rapid and simple AAV capture and polish DOE with new digital tools

This outline describes the advanced and fully automated purification development and optimization for an AAV vector with OPUS® RoboColumns® and Tecan’s Fluent™ robotic workstation.

Configure your columns

play icon video poster

 High Performance

Process Development

  • Resin screening / Condition screening
  • Parameter optimization

The development of a purification workflow for a specific molecule requires evaluation of the resin and the operating conditions for each chromatography step.

Using a scale-down chromatography column configuration drives efficiency and higher throughput. The performance of OPUS® MiniChrom® Columns is equivalent to the performance of larger columns, yielding reliable and predictive chromatography performance data. Using these smaller scale-down columns for process development saves valuable samples, cost, resources and time.

Results can be saved in a resin library of preferred resins.

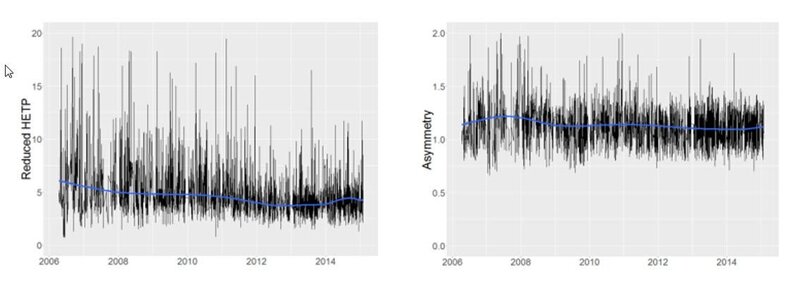

Scharl et al., Trend analysis of performance parameters of pre-packed columns for protein chromatography over a time span of ten years,  Journal of Chromatography A, 1465 (2016) 63–70.

 High Performance

Sample preparation / Process Analytical Technology (PAT)

  • Larger protein quantities

The development and manufacture of a biotherapeutic requires significant analytical characterization of in-process intermediates.  Non-purified samples require sample preparation before analysis can be executed. OPUS MiniChrom Columns enable one-step purification of multiple samples in parallel.

Use of OPUS MiniChrom Columns generates 8-400 mg of sample per run.

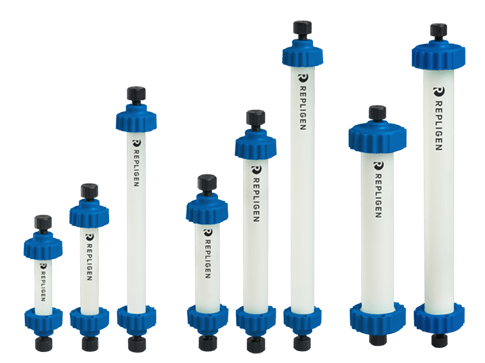

OPUS MiniChrom Pre-packed Columns for Process Development

Designed for bench-scale resin screening, process development,  and sample preparation, OPUS® MiniChrom® Columns are pre-packed with user-specified resin and supplied ready to use with any liquid chromatography system.  Flexible column dimension configurations (internal diameters, bed heights, volumes) allow comparative evaluation of process parameters and the construction of customized resin libraries.

Manufacturing Centers of Excellence

Repligen develops and manufactures products for the biopharmaceutical industry under an ISO 9001 quality management system. We focus on the timely delivery of high quality, consistent and robust products, to ensure business continuity for our customers.

Repligen manufacturing sites are located in Massachusetts, California, and New Jersey in the United States and in Sweden, France, The Netherlands,  Germany and Estonia.

Locations

Customer First.

Support is part of the Repligen DNA. Our goal is to provide exceptional customer experience, and to support the efficient and successful adoption and implementation of all Repligen products and services.

  • Field Application Support
  • Customer Service
  • Field Service Engineers

Have a question?

Specifications



Column inner diameter

5 mm



8 mm

    11.3 mm

Packed bed height

10 mm

25 mm

50 mm

20 mm

50 mm

100 mm

50 mm

100 mm

Column volume

0.2 mL

0.5 mL

1.0 mL

1.0 mL

2.5 mL

5.0 mL

5.0 mL

10.0 mL

Inner cross-sectional area

0.2 cm2



0.5 cm2



1.0 cm2



Connectors

Fingertight 1/16", female (10-32)

Column material

Polypropylene

Chemical stability

All commonly used aqueous buffers, pH 1 – 14, organic solvents*.
Avoid the use of halogenated organic solvents, hexane

Column storage solution

AIEC and CIEC Columns: 20 % ethanol + 150 mM sodium chloride
HIC, SEC, Affinity and MMC Columns: 20 % ethanol
CHT, CFT Columns (Bio-Rad): 20 % ethanol + 10 mM sodium phosphate, pH 6.8
ProSep® Columns(Millipore):1 % benzyl alcohol + 0.1 M sodium acetate, pH 5.1

Recommended storage temperature

AIEC, CIEC, HIC, SEC and MMC: +4°C to +30°C
Affinity Columns: +2°C to +8°C

Working temperature

+4°C to +30°C

Maximum working pressure

Up to 30 bar

Flow velocity

16 – 1000 cm/h**

Labelling

Laser-etched on every individual column body. Label contains:

  • Product number
  • Serial number
  • Resin name
  • Column dimensions (ID x H, V)
  • Flow direction

* The chemical stability of the packed chromatography resin also has also to be taken into consideration. For more information, please refer to the manufacturer’s resin specification.
