CTech™ ViPER® ANLYTX Software

The CTechTM ViPER® ANLYTX platform is designed with an app-based architecture where each app is designed for a dedicated purpose. One software platform for all your analytical needs.  Our software allows for easy interpretation of sample data, providing key insights that are automatically generated from absorbance over pathlength and display slope, R2, wavelength, concentration, extinction coefficient (if known) and specific users results. Everything you need to take action within your process.



Speak to an Expert

Explanations Where You Need It

Scattered throughout the interface are information pop-ups, to give you reminders, directions and background details on key aspects within the platform and apps — just look for the “i”.



Hardware Detection with Prompts

ViPER automatically detects and displays the status of your connected VPT device(s), also providing walk-through steps, where required, for setting your next testing sequence.

Modern Web Interface

Utilizing the latest state-of-the-art web tools to allow our platform to generate customized reports, offer various export options, and highly configurable security features.

Visualize your Data Even Further

High quality graphing features help you visualize your data better. Each application has unique tools that improve the analysis of the acquired data.

The Simplified Application Approach

Each task-based application (app) is designed for a specific purpose. Within each app you can create and save test profiles/methods for quick consistent results every time — for security and quality control there are levels of interaction access ranging from Admin to User status.

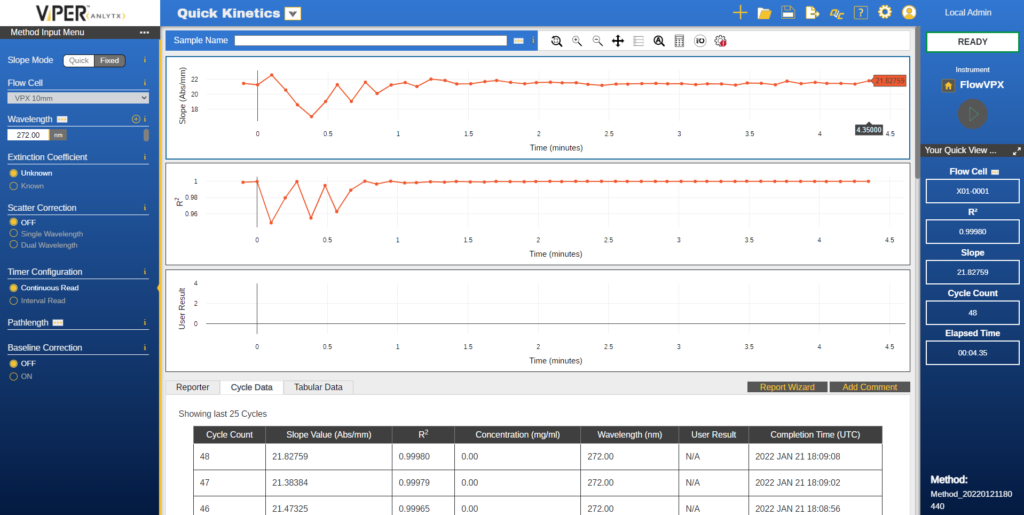

Quick Kinetics

Monitor your data in real time, watch your concentration as it changes throughout your process – the essence of variable pathlength technology. Design to support various applications such as: Chromatography, Dynamic Binding Capacity, Ultrafiltration/Diafiltration (UF/DF), Drug Product Manufacturing (Formulation), and many more. Built in guided hardware prompts enables the user to always follow best practices. Seamlessly float back between your sample and your data.

Available for: CTechTM FlowVPE and CTechTM FlowVPX System

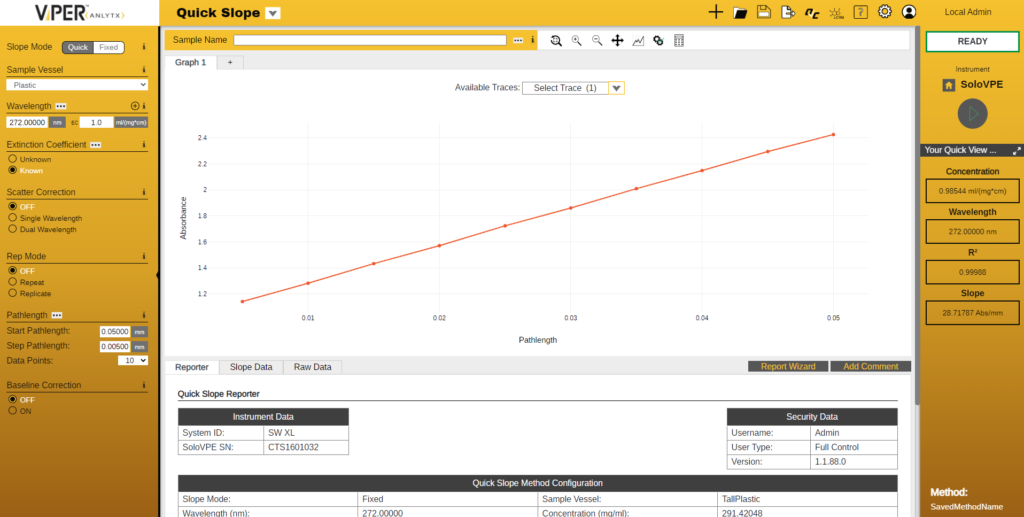

Quick Slope

Trust your data with discrete reads and detailed reporting. By utilizing a smart algorithm for optimal pathlength data collection, Quick Slope mode simplifies concentration. Fixed Slope mode drives distinct instructions for repeatable results. Accurate results in less than 60 seconds. Dive deep into the data with slope analysis and create individual reports by defining areas of focus, you gain the ability to calculate accurate concentration every time.

Available for: CTechTM SoloVPE System

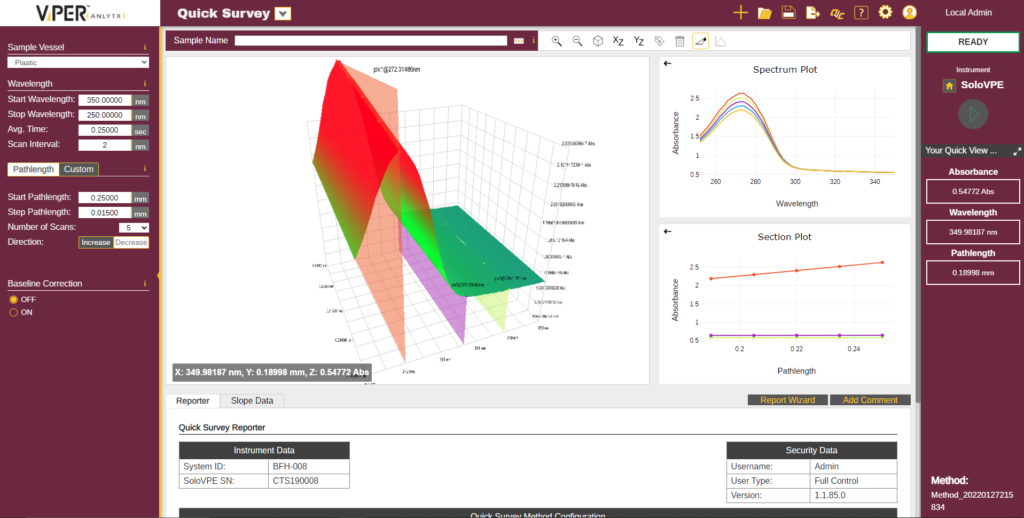

Quick Survey

Discover the most optimal path for your sample. This application displays a full spectral scan with start and stop wavelengths. Run a customized pathlength instruction or choose a fixed pathlength method. Enhanced graphing tools enable better data analysis. Visualize and interact with your data like never before.

Available for: CTechTM SoloVPE System

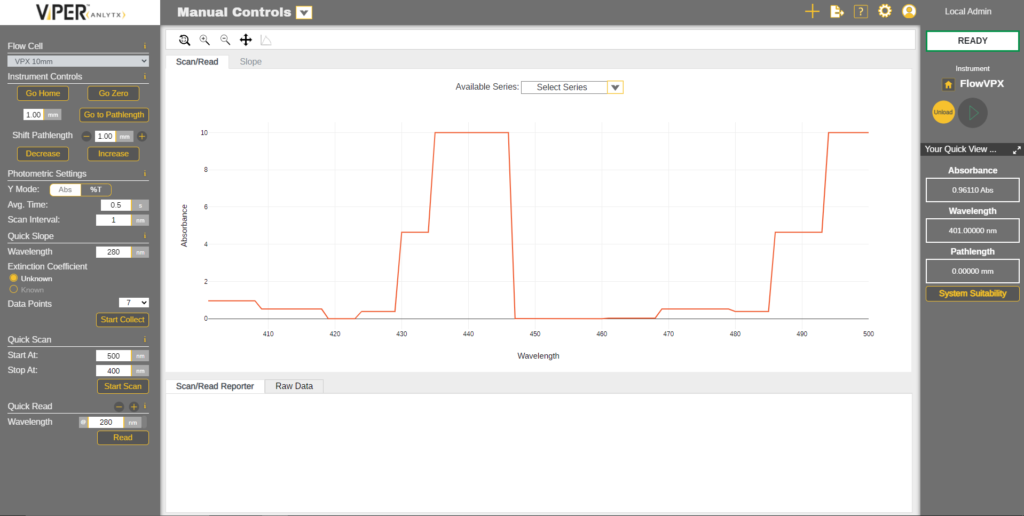

Manual controls

Manually configure your supported variable pathlength hardware settings. Fine tune your variable pathlength device to verify system performance. This application provides troubleshooting tools to make it so you’re never offline. Run individual instructions to verify every component is operational. Take control of your system.

Available for: CTechTM SoloVPE, CTechTM FlowVPE, and CTechTM FlowVPX Systems

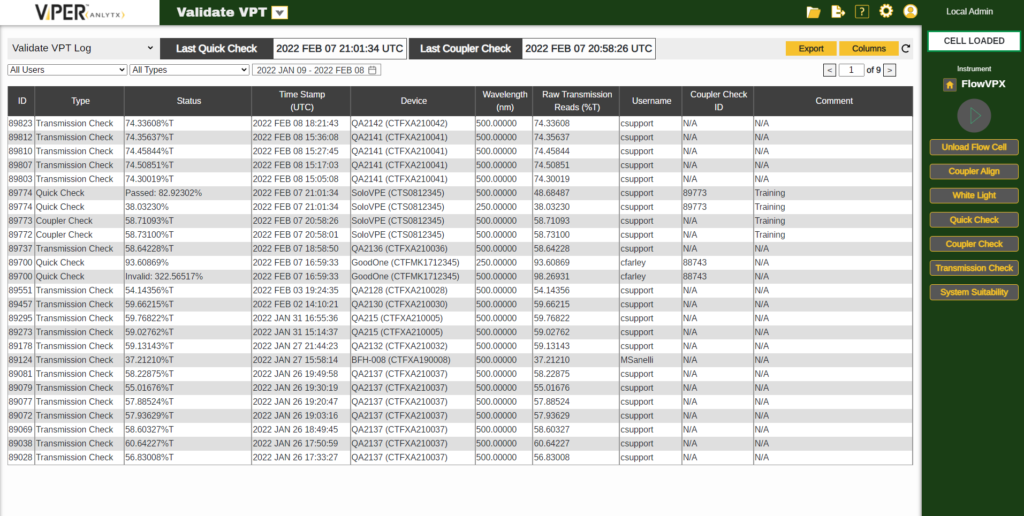

Validate VPT

Verify the health of your system. This application performs system maintenance checks to ensure accuracy and reliability of supported variable pathlength hardware. Run highly repeatable and accepted tests to validate system performance. Robust logging allows users to maintain and follow best practices.

Available for: CTechTM SoloVPE, CTechTM FlowVPE, and CTechTM FlowVPX Systems

Security, Validation and Hardware Details

Administrators can assign user roles and feature access of available applications on a group or user level — including using these security measures to dictate how eSignatures are initiated and managed during specific software events. Secure settings help ensure the software is compliant with CFR 21 Part 11 Annex 11.

Major features include:

  • User Platform Access Levels
  • User App Access Levels
  • User App Feature Access
  • E-Signature event configurations
  • E-Signature user level configuration

OPC-UA System Interface allows the user to set up methods and device control runs from outside ViPER, for system integration with other process control software or LIMS systems.

Major features include:

  • Start/Stop a Run
  • Get last Cycle Data
  • Open an existing method
  • Set method variables

Why wait 9-12 months (the standard time for a Clinical and/or GMP Manufacturing environment Computer System Validation) when our dedicated team can complete the task in as little as 2 days!  Free up your resources and expedite an improved testing methodology for your process.

ViPER ANLYTX 1.1 has been validated for use with:

  • Agilent Cary 60 spectrophotometer
  • All versions of SoloVPE, FlowVPE and FlowVPX hardware when used with an Agilent Cary 60.

ViPER ANLYTX 1.1 requires:

  • Windows 10
  • Microsoft .NET 4.7 Framework or later
  • SQL Server Express 2017 or newer (SQL Server Standard 2012 and newer can also be used)
  • Agilent Cary WinUV environment to run (it has been validated for use with Cary WinUV Version 5.1.3.xxx platform

ViPER ANLYTX 1.0 functions properly when used on computer hardware recommended in the Agilent Cary 60 User Manual

ViPER ANLYTX 1.0  Validation Testing was performed using the Standard Production Computer System(s):

Lenovo ThinkPad T460s

  • Intel Core i7 (Dual Core 2.6GHz 3MB)
  • 20GB 1600 MHz DDR Non-ECC RAM
  • 500GB 7200rpm Hard Disk Drive
  • Intel Integrated Graphics
  • Windows 10 64-Bit
  • Chrome 64bit V.75 or later

Dell Rugged Latitude 7424

  • Intel Core i7-8650U 1.90GHz
  • 16GB DDR4 RAM
  • 128GB Solid State Hard Drive
  • Windows 10 Pro 64-Bit
  • Chrome 64bit V.75 or later

Other Software Offerings

Dedicated software for CTech SoloVPE System.

Operating System: Microsoft Windows 7 & Windows 10 compatible

Software Environment: Agilent Cary WinUV Software Suite Version 5.0/5.1 through (1042)

VPT Software Control: SoloVPE Software Version 3.1

Validation Companion (Optional): QuickVCA for use with the SoloVPE Validation

Security Companion (Optional): SecureVPT Software Version 3.1 (for GxP implementations)

Prior Versions: Prior software versions may be available on request. Contact Sales for more information.

Legacy Support: Support for legacy products can be secured but subject to limitations

The SecureVPE software package is an optional companion product for the CTech SoloVPE software. SecureVPE offers users the tools needed to achieve compliance with their company and regulatory requirements.

Features:

  • Windows 7/10 (32 and 64-bit compliance)
  • Eliminating dependence on the Agilent’s Cary WinUV GLP administration application
  • Simplified user interface
  • Windows active directory connection for users and groups
  • Event-driven eSignatures
  • User/group personalization features
  • Eliminating Microsoft Access® Runtime Architecture
  • Secure access points for SoloVPE software, SecureVPE software, and SoloVPE administration software

Monitor protein concentration over time with the Kinetic Quick and Kinetic Fix software.

Kinetic Quick: The ideal tool for chromatography application

Designed for the FlowVPE System, Kinetic Quick, allows users to specify set wavelengths and pathlengths prior to data collection. No search algorithm is used, which results in more measurement in less time.

Kinetic Fix: Perfect for UF/DF application

Kinetic Fix runs a search algorithm to find an appropriate pathlength range for a given sample, tracking all concentration changes during data collection.
