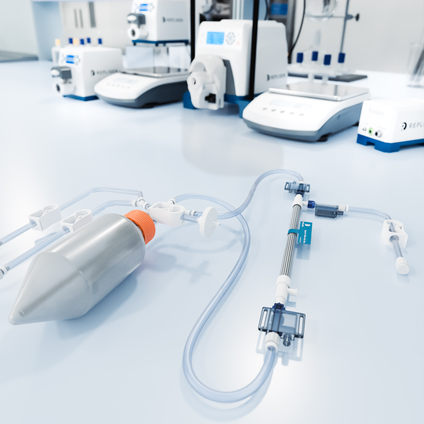

ProConnex® Flow Paths for Systems
Expertly designed plug-and-play flow path
ProConnex® Flow Paths for TFF and Chromatography processes are single-use and engineered for optimum performance, reproducibility and time savings. System specific flow paths provide speed and reliability. Configured flow paths prioritize process requirements and sterility.

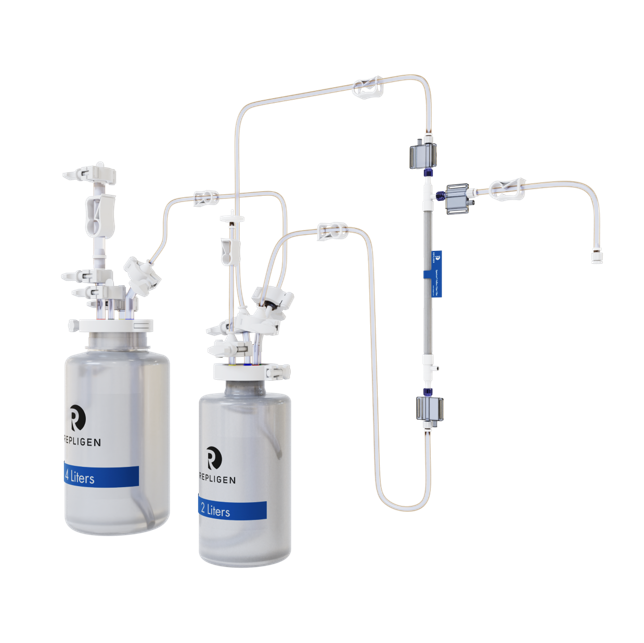

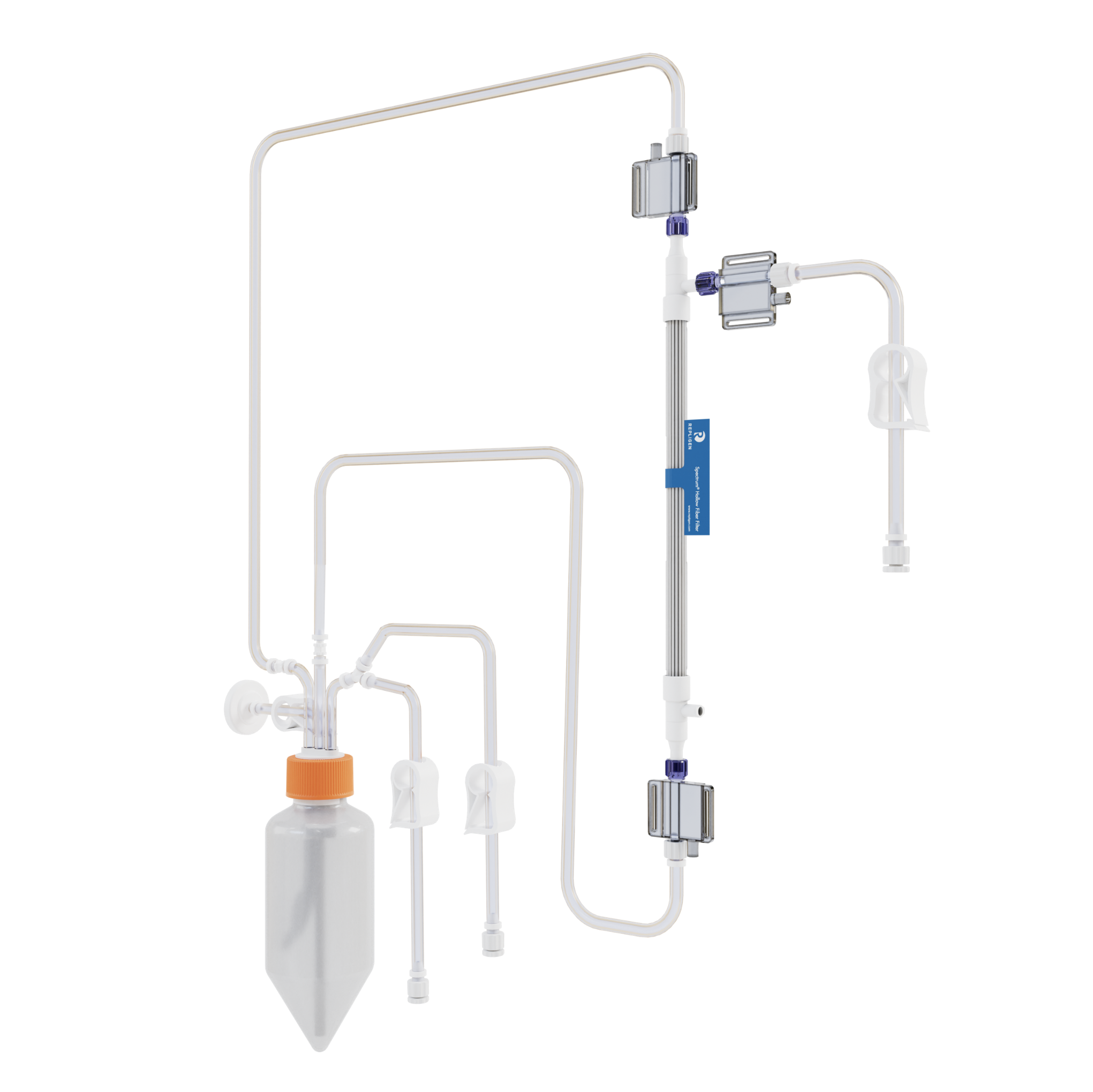

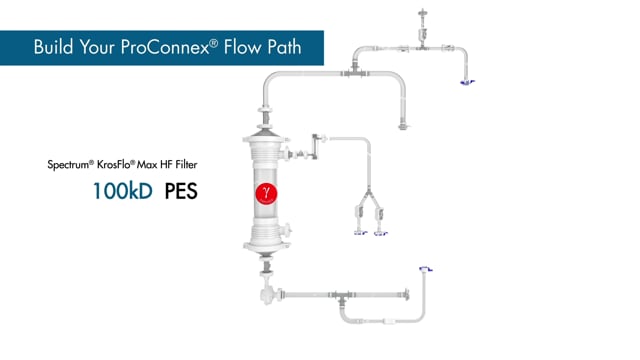

Design Your Own
Configure a KrosFlo KR2i or KrosFlo KMPi flow path to meet specific process requirements. Includes quality documentation and free consultation.

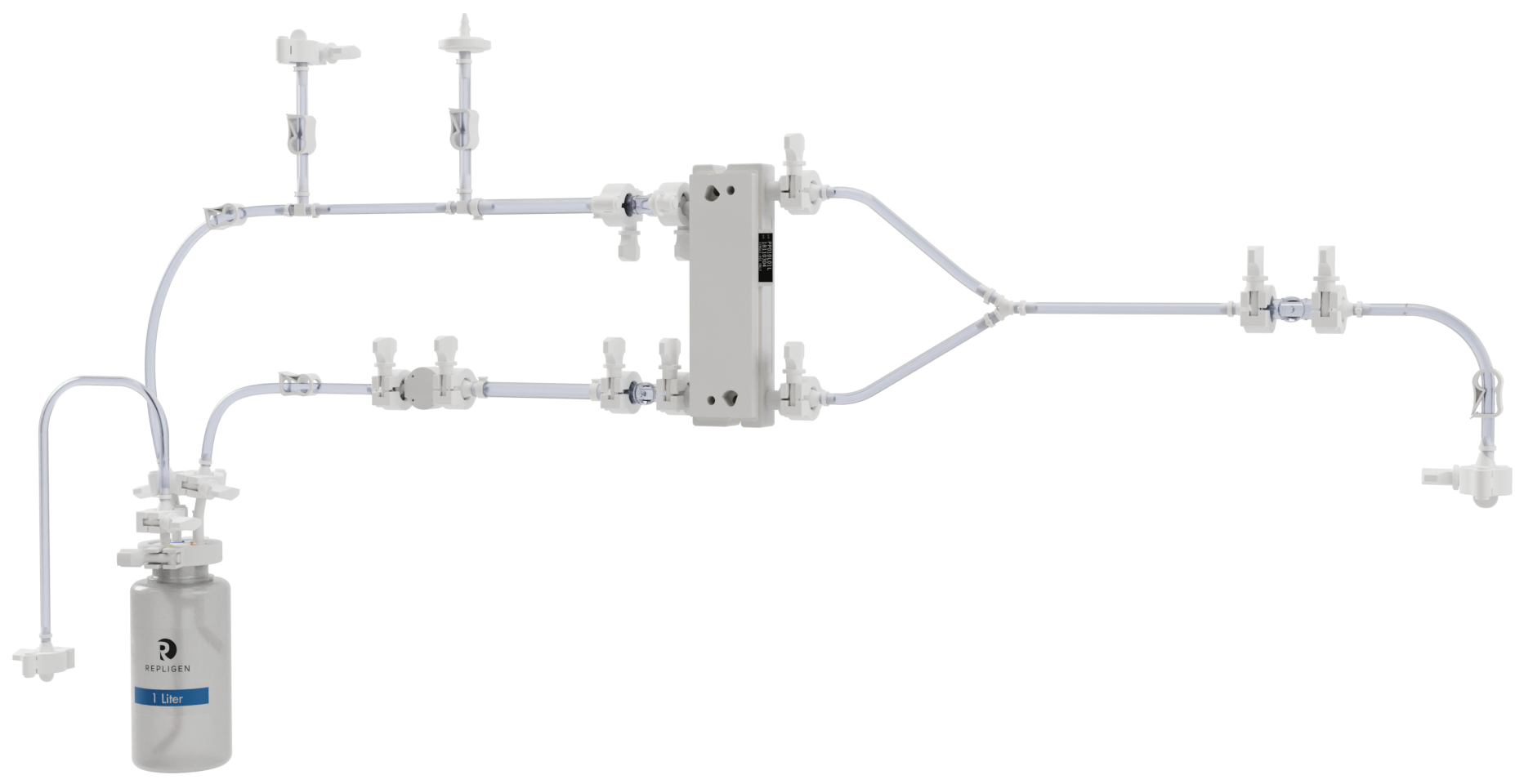

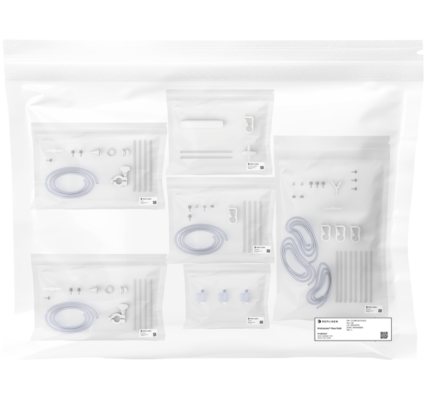

KrosFlo FS-15 and FS-500 Flow Paths
Off-the-shelf flow paths offer convenience, reliability and quality documentation for flat sheet cassettes run on FS systems. No more cutting tubing, component searching, documentation and inconsistent setup. Filter sold separately.

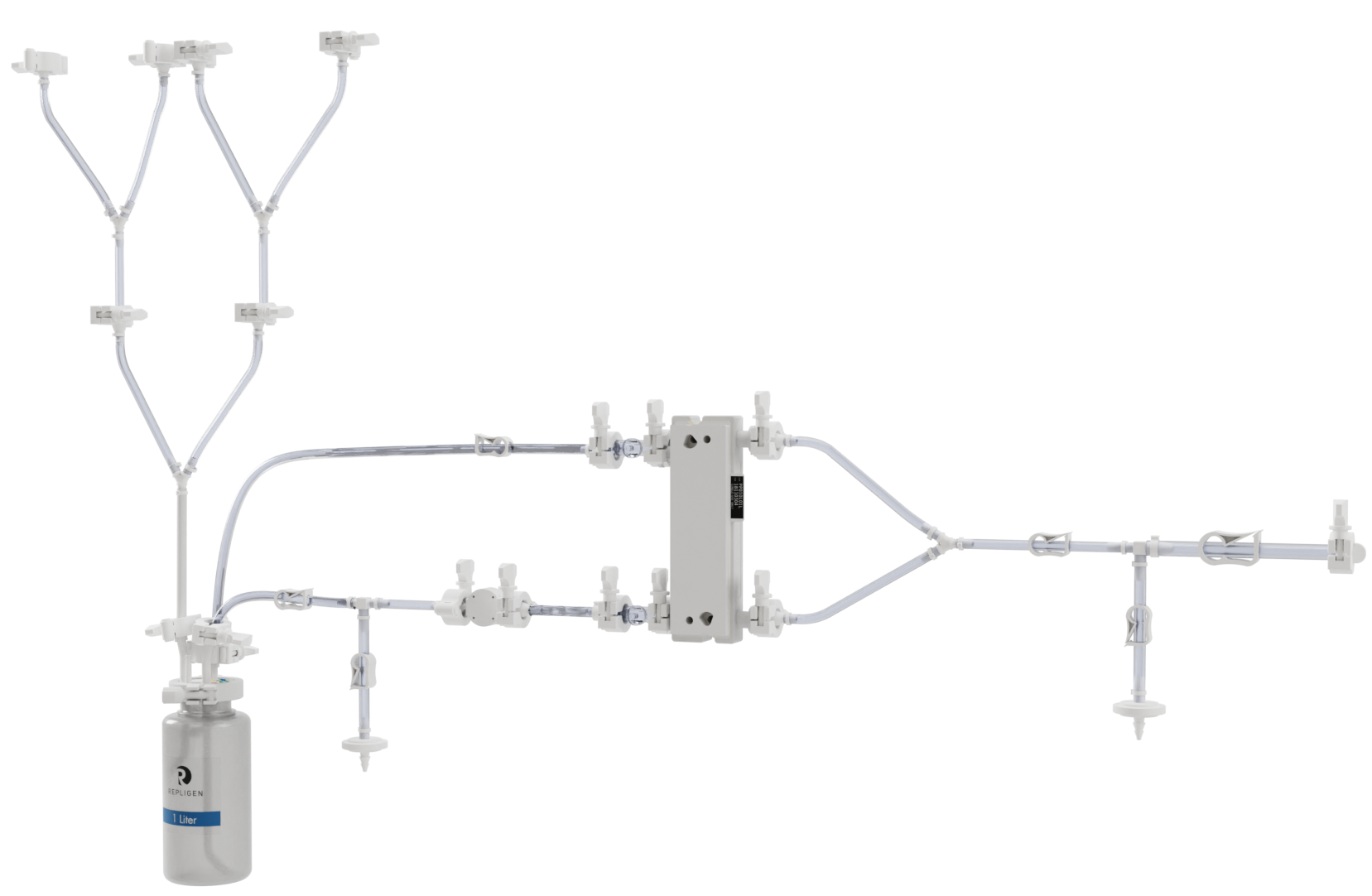

Design Your Own
Configure a FS flow path to meet specific process requirements. Includes quality documentation and free consultations.

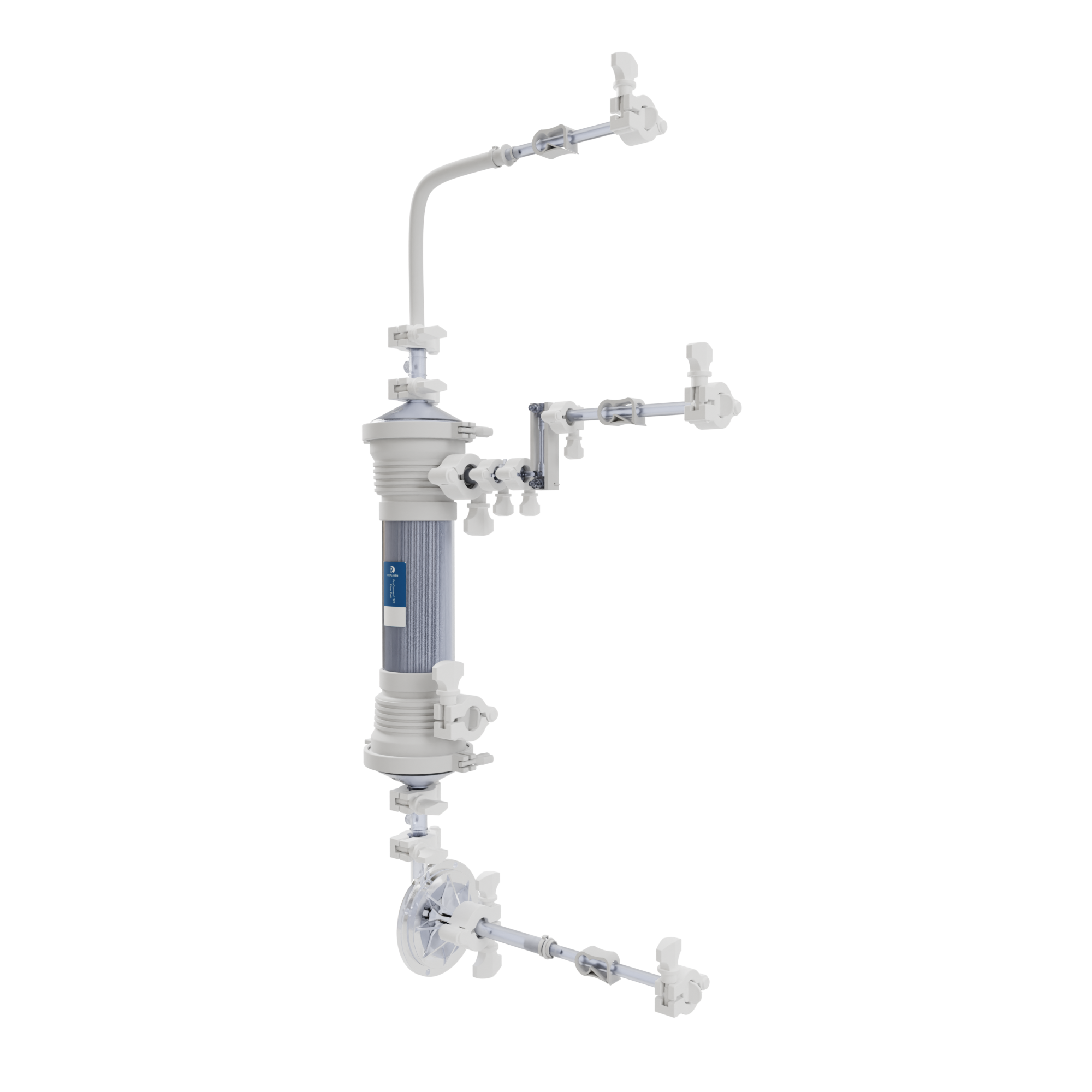

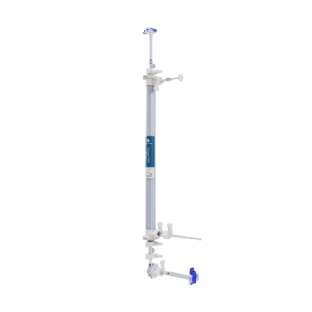

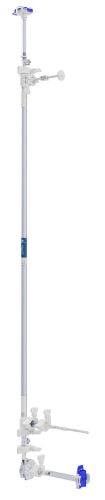

Custom KrosFlo TFDF Pilot and Process Flow Paths
When scaling up, configure a flow path to meet your process requirements for your pilot and process KrosFlo TFDF Systems. All KrosFlo TFDF flow paths are single-use, gamma-irradiated and arrive dry, free of sodium hydroxide, glycerin, preservative and ethanol, for a zero flush start state.

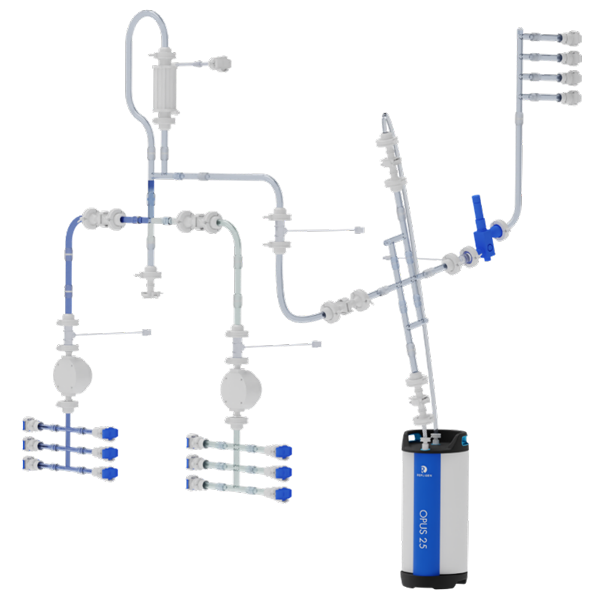

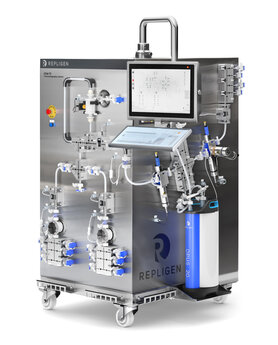

KRM Chromatograhy System Flow Paths
Highly optimized, low hold-up volume flow paths that utilize innovative technologies like overmolded connections and injection molded intersections for optimal fluid dynamics on the advanced KRM Chromatography Systems.
KrosFlo RS TFF System Flow Path
Highly optimized, low hold-up volume flow paths that utilize innovative technologies like overmolded connections and injection molded intersections for optimal fluid dynamics on the highly automated KrosFlo RS Systems.

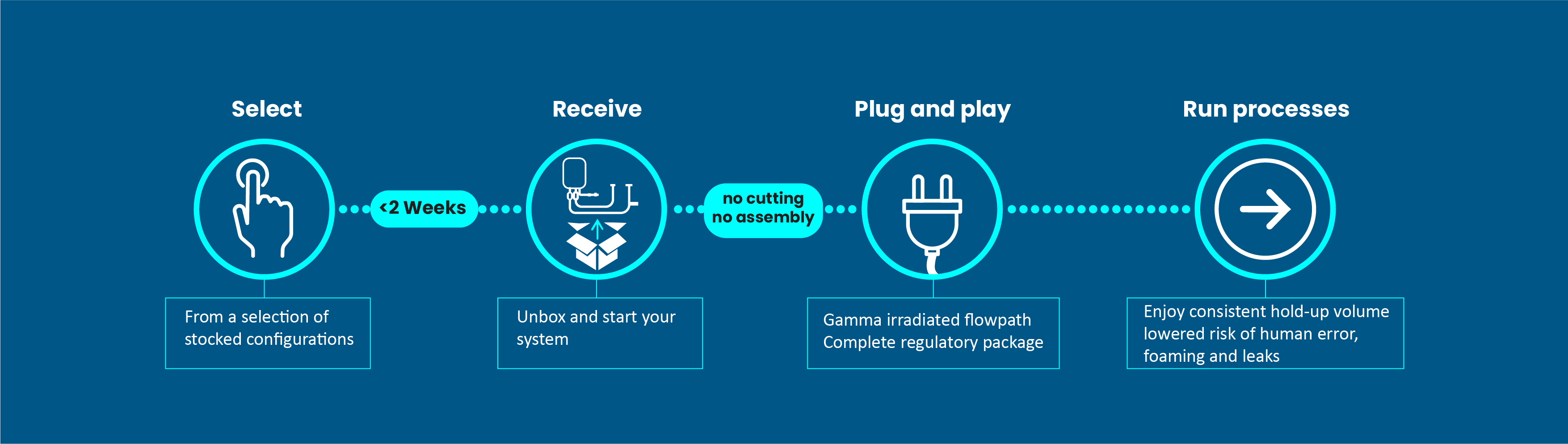

SYSTEM FLOW PATHS
Save time, streamline operations and hit the ground running
These off-the-shelf flow path solutions offered by Repligen deliver wins for the customers every step of the way.

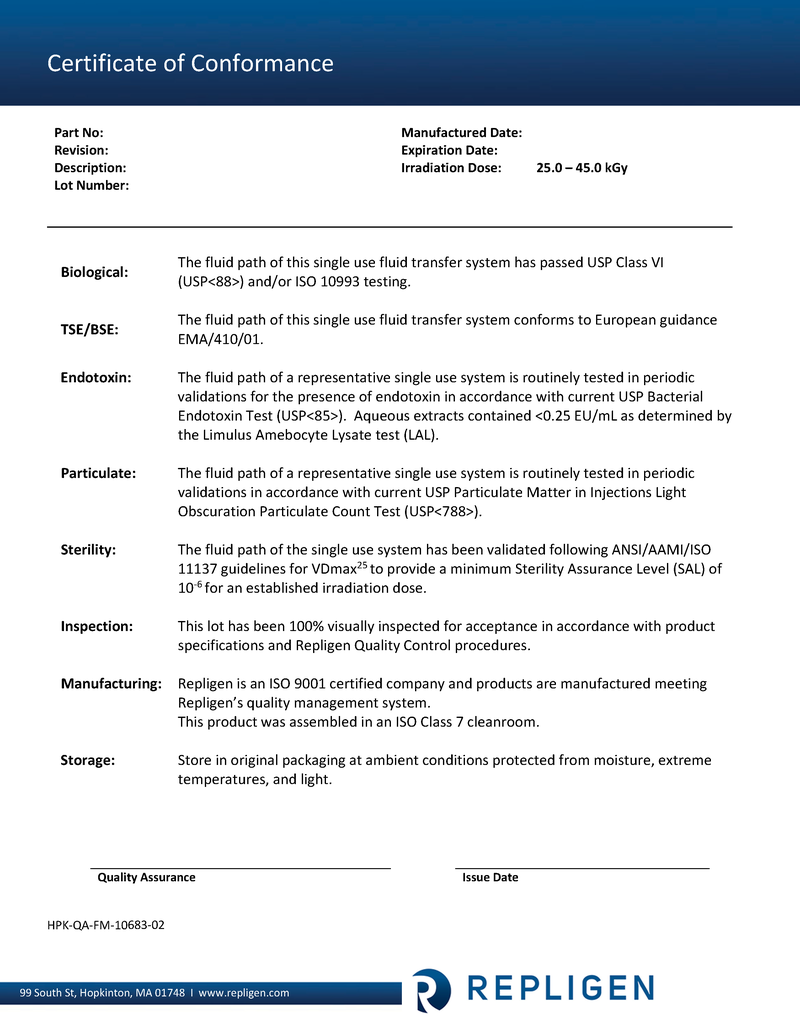

SYSTEM FLOW PATHS
High quality standard to minimize regulatory burden
BIO USP <88> TSE/BSE
- The fluid path of this single use fluid transfer system has passed USP class VI (USP<88>) and EMA/410/01
PARTICULATE USP <788>
- Current USP standard for allowable visible and subvisible particulate for medical infusions an injections
ENDOTOXIN USP <85>
- Current standard for quantification of endotoxin, Aqueous extracts from representatives samples contained <0.25 EU/mL
STERILITY ANSI/AAMI/ISO 11137
- Validated following ANSI/AAMI/ISO 11137 guidelines for VDmax25 to provide a minimum sterility assurance level (SAL) for 10-6 for

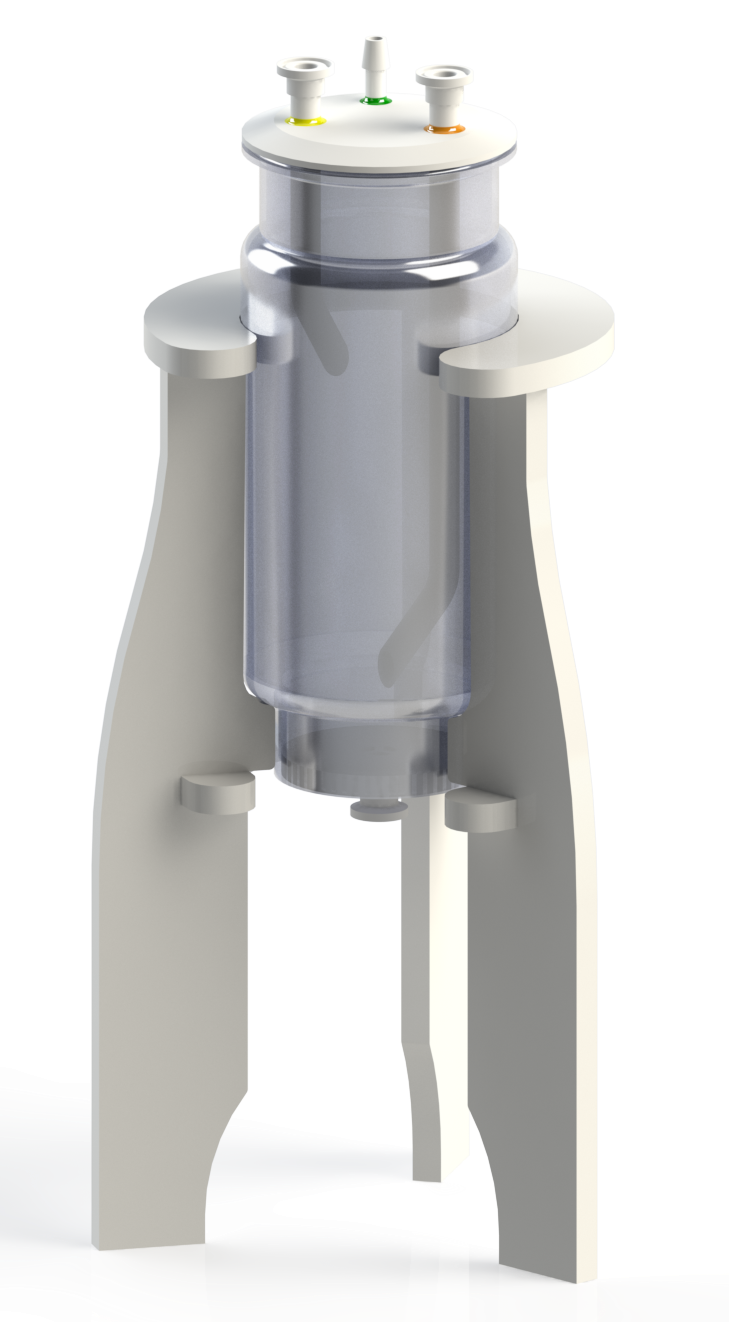

CONFIGURABLE FLOW PATHS
Flow paths engineered to user specifications and requirements
Leverage a library of over 300 individual components and expert support to turn specific process requirements into an optimal flow path in no time.
Get the most out of the process and Repligen system while maintaining sterility and still being plug and play.
These custom configured flow path are supplied fully assembled, complete with accessories and filters.
CONFIGURABLE FLOW PATHS
Technical consultation from concept to product
With decades of experience, Repligen technical experts match your core technology with the flow paths that suit your application.
Core technology, application, facility fit
Feed flow rate, working volume and pressure, integrity test, sterility, scale
Flow path requirements
Aseptic connectors, sensors, vessel, hold-up volume
Flow path specifications
Engineering documents, bill of materials, design lock
High-Capacity, Globalized Manufacturing and Supply Chain
A supply chain that prioritizes best-in-class lead times and 95% on time delivery by designing for robustness, redundancy and risk mitigation. System specific flow paths and certain hollow fiber filters are stocked and available off-the-shelf.

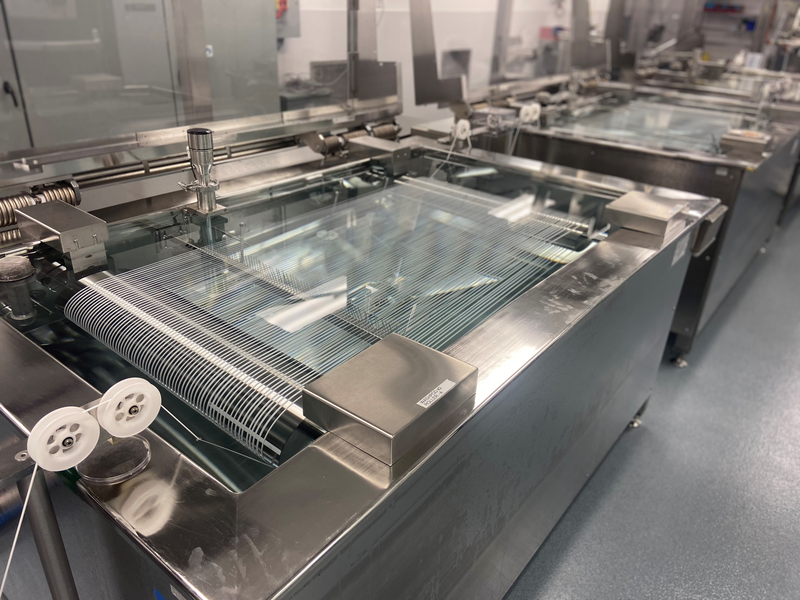

Membrane and module manufacturing
- Dual continent

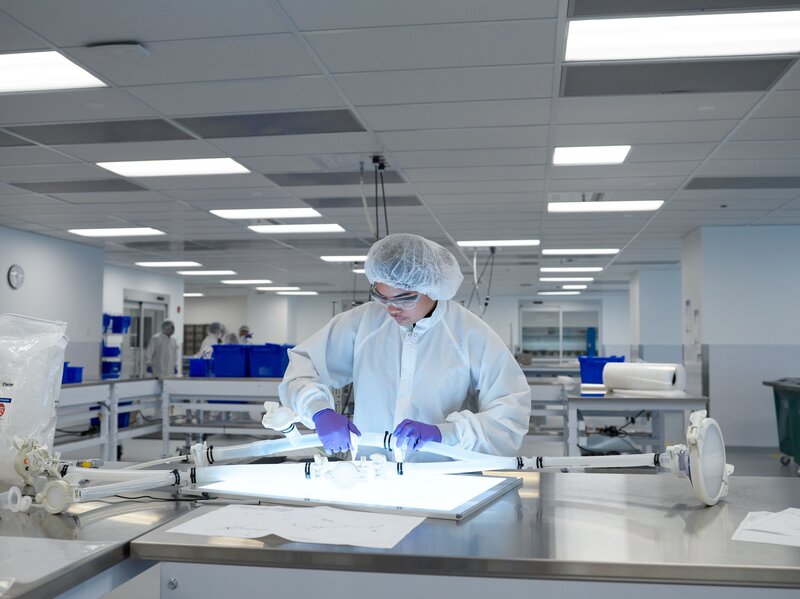

Assembly and gamma radiation
- Multi-lane, multi-site, and dual-continent assumbly centers
- Multi-cell and multi-site gamma radiation with 2 independant partners
Packaging and logistics
- Continuous improvement programs
- ISTA3A certified packaging process
- Networked and regional distribution
- Sustainability programs
Key Specifications for System Flow Paths
Below are the key specifications for system flow paths. To see specifications for KrosFlo® KTF and RS TFF Systems or the KRM™ Chromatography System, please contact a sales representative.
|Description||Hollow Fiber Ready KR2i Tube Sets||Flat Sheet Ready KR2i Tube sets||FS-15 Flat Sheet Ready Flow Paths||FS-500 Flat Sheet Ready Flow Paths|
|Compatible with||HF Modules C, D, T, S||TFPLS-SA08 & TFPLS-LVFL||-||-|
|FPI Connectors||-||-||1/2" TC||1 - 1/2" TC|
|Reservoir Connectors||-||-||1/2" TC||1/2" TC|
|Reservoir Size||15 mL - 1 L||250 mL - 2 L||-||-|
|Pump Tubing (Feed, Addition)||Pharmapure #14 - #25||Pharmapure #16 - #25||Silicone #17; #25; Reinforced .25" ID||Silicone #82; #36; Reinforced .50" ID|
|Retentate and Permeate Tubing||Silicone #14 - #25||Pharmapure #16 - #25||Silicone #17 & Reinforced Silicone 0.25" ID||Silicone #82; #26; Reinforced Silicone 0.5" ID|
|Hold-up Volume||0.3 mL - 40 mL||5 mL - 60 mL||75 mL||300 mL|
|ProConnex TFDF Flow Path||Lab-scale||Lab-scale||Lab-scale||Pilot-scale||Process-scale|
|Type||Filter||Flow path||Flow path||Flow path||Flow path|
|Surface Area (cm2)||3, 30||3, 30, 50||150||450, 750, 1500||2100, 6000|
|Fibers||1||1||1||3, 5, 10||14, 40|
|Total Fiber Length (cm)||20||20, 36||108||108||108|
|Effective Length (cm)||2, 20||2, 20, 36||108||108||108|
|Number of Tubes||1||1||1||3, 5, 10||14, 40|
|Standard configuration made to stock||Yes||Yes||Yes||No||No|
|Part Number||TFDF-3, TFDF-30||STFDFCL15110S, STFDFCL15546S, STFDFCL15111S||STFDFCL15112S||-||-|
Manufacturing Centers of Excellence
Repligen develops and manufactures products for the biopharmaceutical industry under an ISO 9001 quality management system. We focus on the timely delivery of high quality, consistent and robust products, to ensure business continuity for our customers.
Repligen manufacturing sites are located in Massachusetts, California, and New Jersey in the United States and in Sweden, France, The Netherlands, Germany and Estonia.
Support is part of the Repligen DNA. Our goal is to provide exceptional customer experience, and to support the efficient and successful adoption and implementation of all Repligen products and services.
- Field Application Support
- Customer Service
- Field Service Engineers
