Configurable set-up delivers high throughput

Permeate pressure data for improved characterization

Integrated pressure sensors

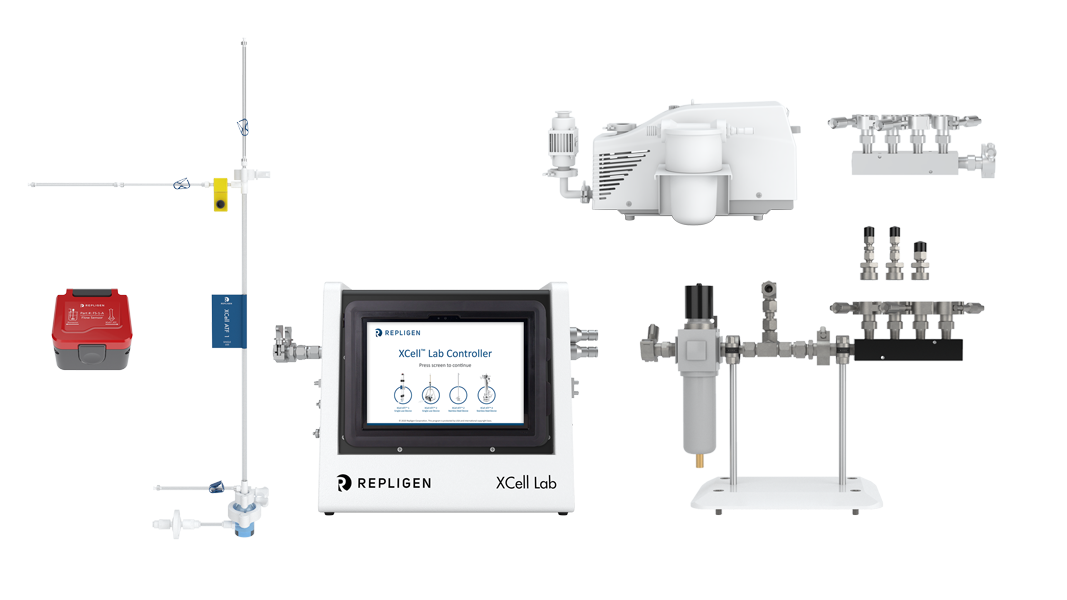

All components validated as a complete system

Easy connectivity to any bioreactor

2X Device capacity


Software designed for technical control and easy navigation

User-definable HMI customizations


Configurable set-up delivers high throughput


One XCell™ Lab Controller can support up to two XCell ATF® Devices that can be configured on either one or two bioreactors.

A single manifold can support up to 8 XCell ATF® Devices

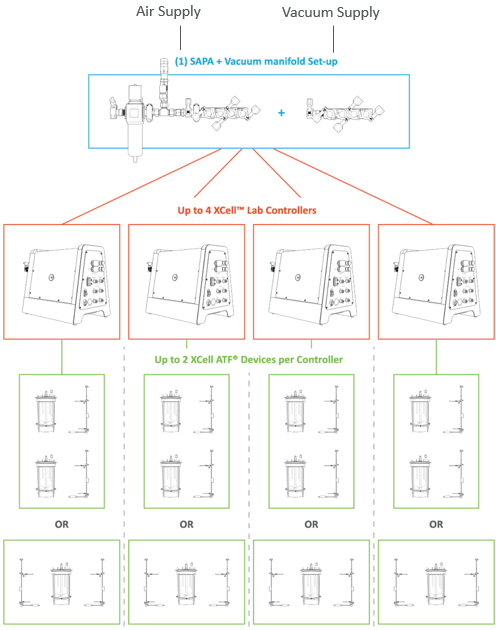

SAPA + Vacuum  Manifold Set-up
  • Adapters provided to fit all connections

  • Pressure regulation and relief

  • Air supply filtration

  • Supports up to 4 controllers

Up to 4 XCell™ Lab Controllers
  • 1 tablet per controller

  • Supports up to 2 devices

Up to 2 XCell ATF® Devices per Controller
  • Flexible bioreactor configuration

  • Supports ATF 1,2,4


5th generation controller with precision engineering

The XCell™ Lab controller is engineered for robust intensification and user-friendly experience.

  • Maintain precise flow rates even at high viscosities during the late stages of intensification development using a control logic loop with re-engineered hardware.
  • Monitor real-time filter status using a recording of permeate pressure data.
  • Configure alarms for key process events at just the right moment, reducing errors and maximizing efficiency.
  • Visualize key trending data on a tablet-based graphical interface designed for clarity makes the system enjoyable to use.
  • Increase productivity by deploying up to two filtration devices that can be configured on either one bioreactor or two.

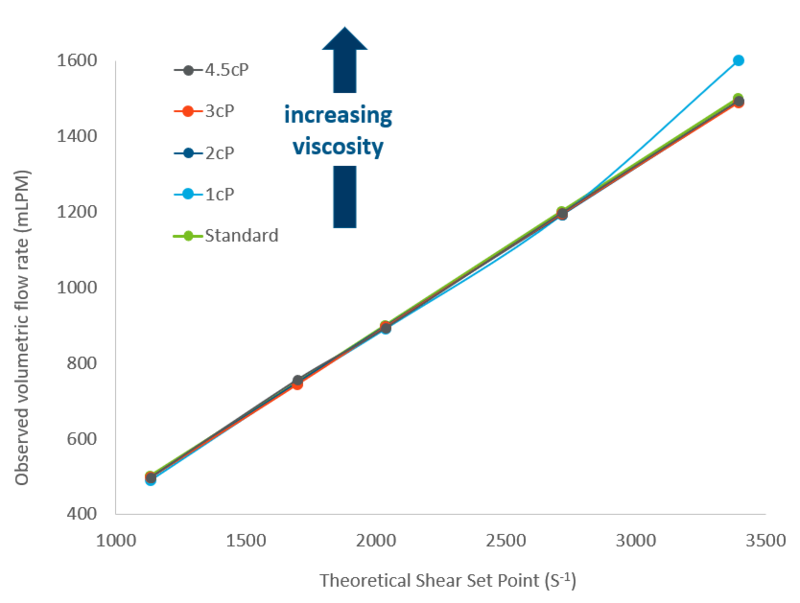

Consistent flow rates with increasing viscosity help ensure robust development and manufacturing scale-up.

  • Overlapping lines demonstrate that the correlation between volumetric flow rate and shear set point remains consistent with increasing viscosity.
  • The consistent flow rate is maintained using a new valve and control logic loop that enables precision pumping.

Software designed for technical control

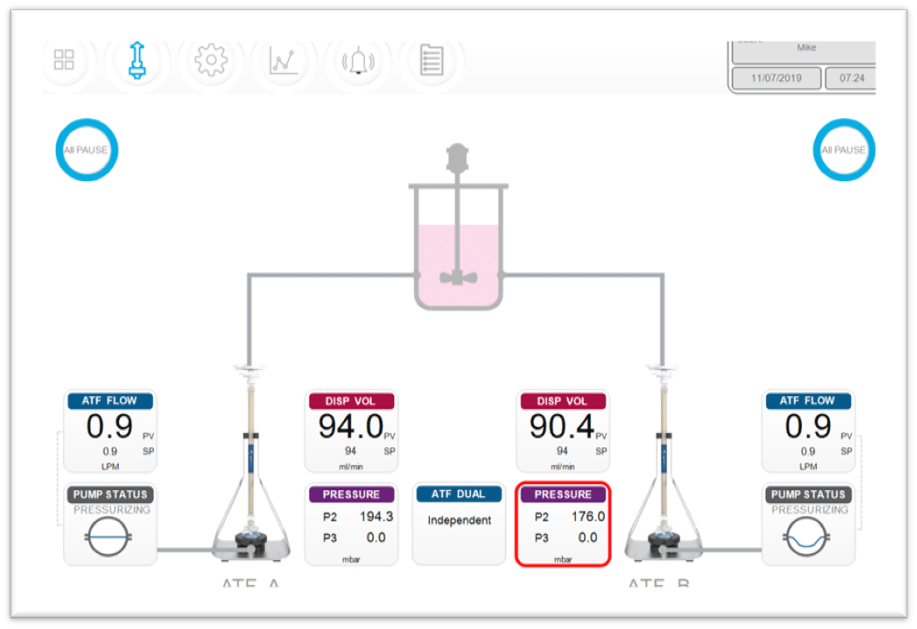

Modern minimalist layout

  • Image adapts to actual equipment in use
  • Fast familiarization through colors and format
  • Alarms graphically associated with specific component

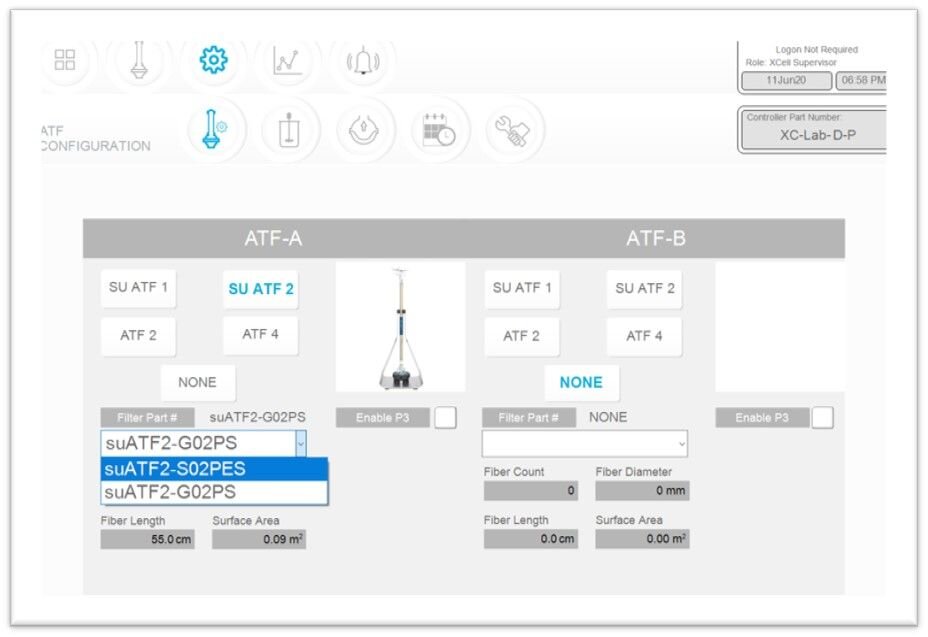

Graphics confirm text input

  • Single button selection (iPhone-like)
  • Integrated device pictures and part numbers
  • Automatic shear calculations

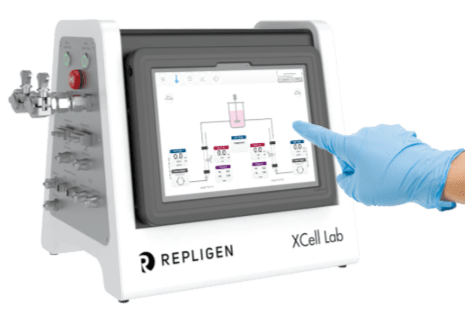

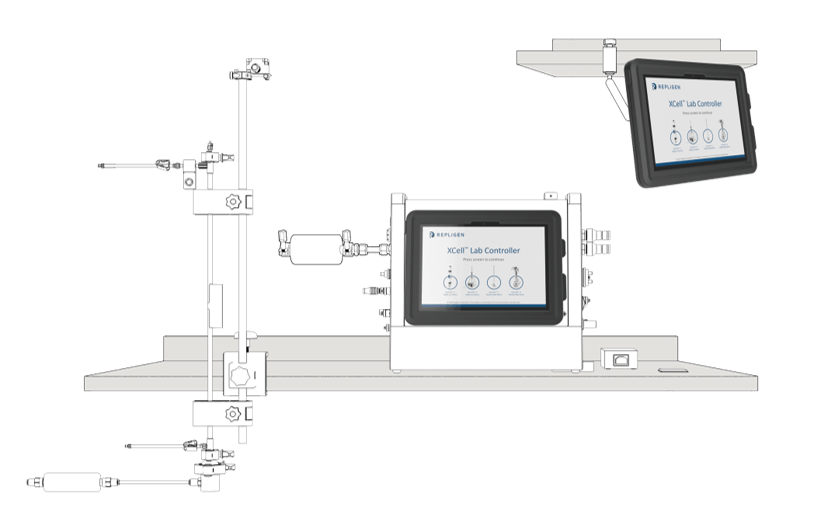

An interface ready for your lab environment

  • Splash-proof case protects against lab hazards and accidents
  • Mountable arm adjusts position to your environment
  • So simple, no keyboard required
The R Factor Video Blog
play icon Video poster

The XCell™ Lab Controller solves your productivity puzzle with new engineering, increased throughput and more process data. Turn the frustration of endless permutations into a simple solution that generates more cells, and more product…faster.

play icon Video poster
Think outside the blocks

Intensification is worth it. Build an intensified upstream suite brick by brick with XCell ATF® systems. Make twice as much product in half the time as you watch VCD grow and shrink bioreactor sizes within the same facility footprint.

play icon Video poster
OMW! with XCell™

OMG life gets busy. Set-up industry-best cell culture intensification in less than 30 minutes with the design simplicity of XCell ATF® devices. Celebrate more product at work…and still have time for the special moments at home. YGTI.

Manufacturing Centers of Excellence

Repligen develops and manufactures products for the biopharmaceutical industry under an ISO 9001 quality management system. We focus on the timely delivery of high quality, consistent and robust products, to ensure business continuity for our customers.

Repligen manufacturing sites are located in Massachusetts, California, and New Jersey in the United States and in Sweden, France, The Netherlands,  Germany and Estonia.


Expert Project Management

Customer First.

Support is part of the Repligen DNA. Our goal is to provide exceptional customer experience, and to support the efficient and successful adoption and implementation of all Repligen products and services.

  • Field Application Support
  • Customer Service
  • Field Service Engineers

Have a question?

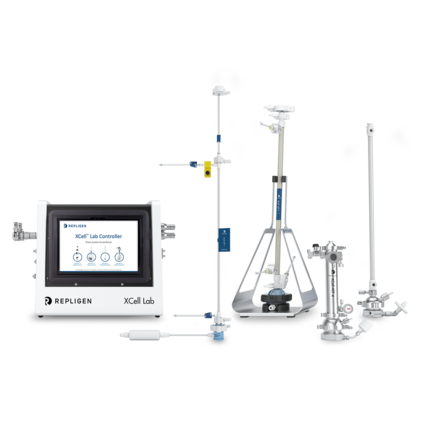

XCell ATF® Lab Devices

XCell ATF® 1 Device (SU)
0.5-2 L

XCell ATF® 2  Device (SU, SS)
2-10 L

XCell ATF® 4 Device (SS)
10-50 L
