Ready‑to‑use dialysis devices made with proprietary Biotech Grade CE dialysis tubing, pre‑assembled in volume‑specific lengths to maximize convenience, ease of use, and sample recovery.

products

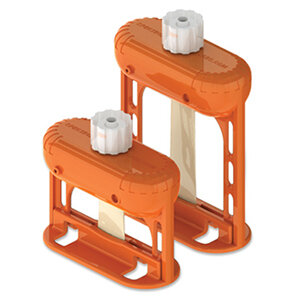

SpectraPor® Micro Float-A-Lyzer®

Micro Float-A-Lyzer® ready-to-use dialysis devices are all made with proprietary Biotech Grade CE dialysis tubing, preassembled with volume specific lengths of membrane tubing and designed to maximize convenience, ease-of-use and sample recovery.

Why It Matters Configurators Related Products Resources Speak to an expert
Buy now
pRODUCT fEATURES

Unique Design

Tubular membrane for max surface area with incorporated air bladder, stand and interlocking pegs

Easy to Use

screw-on cap and pipette provides easy and safe sample loading and in-process testing with no dangerous needles

Total Sample Recovery

Syringe aspiration of clamp sealed membrane for 90-98% sample recovery

Broad MWCO Range

7 MWCO’s from 0.1 - 100 kD for molecular selectivity from small peptides to large nanoparticles

High Purity

Achieve 98% sample purity with Biotech CE membrane, no heavy metals and sulfides

Featured Application

Drug Dissolution: Controlled release for dose determination

USP Apparatus 2 and 4 compatible

Designed for ultimate convenience, the Micro Float-A-Lyzer® significantly improves handling and dialysis of microliter volume samples. This ready-to-use dialysis device is constructed with high purity Biotech Grade Cellulose Ester (CE) membrane in 7 concise MWCOs from 0.1-100 kD for better molecular selectivity. The Luer® port and included syringe allow for easy loading, in-process testing and sample retrieval without risking needle punctures.

Biotech CE exhibits a fair chemical compatibility and tolerates pH 2-9 and temp 4-37 °C. Exposure to most organic solvents is not recommended and should be confirmed on the Repligen Chemical Compatibility table.



FEATURES

  • 2 ready-to-use volume sizes (100-200 µl and 400-500 µl)
  • 7 concise MWCO’s for better separations & selectivity
  • High purity Biotech Cellulose Ester (CE) membrane
  • Included syringe and Luer sample port for easy access (no needles)
  • Self-standing, self-floating and interlocking
play icon video poster

Typical Dialysis Applications for Micro Float-A-Lyzer® Dialysis Devices

  • Drug dissolution and controlled release studies
  • Salt, urea, surfactant and cesiuam removal
  • HPLC sample preparation
  • pH change, buffer exchange and final formulation
  • Purification of Protein, DNA, plasmids, macromolecules, nanoparticles and liposomes
  • Biopolymer purification and removal of monomers
  • Enzyme activity and ligand binding studies
  • DNA and Protein electroelution

Product Specifications

2 Volume Sizes 100-200 µl 400-500 µl
Height 4.4 cm 6.3 cm
Width 4.5 cm 4.5 cm
Thickness 1.9 cm 1.9 cm
Membrane flat width 10 mm 10 mm
Membrane diameter 6.4 mm 6.4 mm
7 MWCOs Color Code
0.1 - 0.5 kD Green
0.5 - 1.0 kD Orange
3.5 - 5 kD Black
8-10 kD Yellow
20 kD Red
50 kD White
100 kD Blue
Membrane type Biotech Grade Cellulose Ester (CE)
PP Luer-Lok cap Open and close for in-process sampling
Color-coded for MWCO
Leak proof and re-sealable
Body piece Seals top/bottom ends of membrane
Buoyant and self-orienting
Polycarbonate
Potting Polyurethane
Sample loading 1 ml syringe (included)
Packaging 12/package

SpectraPor® Micro Float-A-Lyzer® Dialysis Device Part Numbers

MWCO Color Code 100 - 200 µl 400 - 500 µl Quantity
CE 0.1 - 0.5 kD Green F235049 F235061 12/pkg
CE 0.5 - 1 kD Orange F235051 F235063 12/pkg
CE 3.5 - 5 kD Black F235053 F235065 12/pkg
CE 8 - 10 kD Yellow F235055 F235067 12/pkg
CE 20 kD Red F235057 F235069 12/pkg
CE 50 kD White F235058 F235070 12/pkg
CE 100 kD Blue F235059 F235071 12/pkg
